LANSON HCL80V-100A003
SKU / part number: HCL80V-100A003
Price on request
Send the quantity and delivery requirements so our team can confirm availability and provide a quotation.

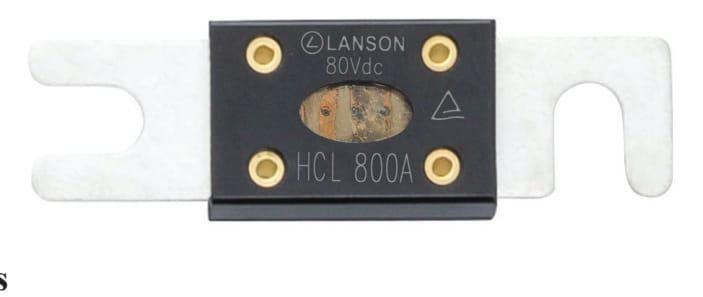

HCL series bolt-connected plate fuse for low-voltage, high-current circuit protection. The current marking in the series example image is not the rating of this model. The image is a manufacturer’s series example; markings and appearance may vary by model.
| Rated voltage | 80 VDC |
|---|---|
| Rated current | 100 A |
| Breaking capacity | 3 kA @ 80 VDC |
| Dimensions | 22.5 × 81 mm |
| Mounting-hole spacing | 61 mm |
| Mounting bolt | M10 |
