SUNLORD SWPA252010S2R2NT
SKU / part number: SWPA252010S2R2NT
Price on request
Send the quantity and delivery requirements so our team can confirm availability and provide a quotation.

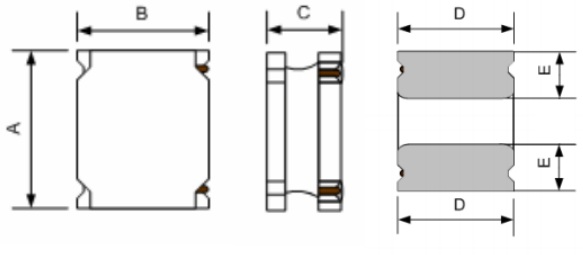

SWPA wire-wound surface-mount power inductor with magnetic-resin shielding for compact power circuits. The image is the manufacturer’s construction or outline drawing.
| Inductance (100 kHz, 1 V) | 2.2 µH |
|---|---|
| Inductance tolerance | ±30% |
| DC resistance (maximum) | 0.209 Ω |
| Self-resonant frequency (minimum) | 61 MHz |
| Dimensions | 2.5 ±0.1 × 2.0 ±0.1 mm; maximum height 1.0 mm |
| Operating temperature (including self-heating) | −40 ～ +125 °C |
| Packaging | Tape carrier package (T) |
