PANJIT PJS6806
SKU / part number: PJS6806
Price on request
Send the quantity and delivery requirements so our team can confirm availability and provide a quotation.

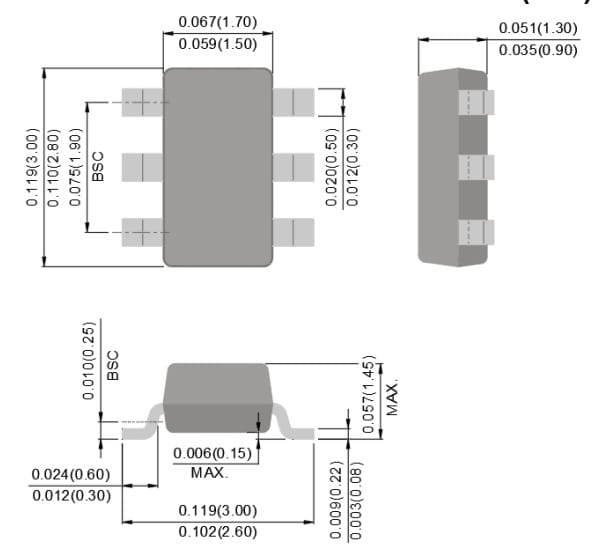

30 V N-channel enhancement-mode MOSFET in SOT-23 6L for load-switching and PWM circuits. The image is the manufacturer’s outline illustration.
| Package | SOT-23 6L |
|---|---|
| Drain-source voltage VDS (maximum rating) | 30 V |
| Continuous drain current ID (TA = 25 °C) | 4 A |
| Gate-source voltage (maximum rating) | ±20 V |
| On-resistance (VGS = 10 V, ID = 4 A) | ＜48 mΩ |
| Junction temperature range | −55 … +150 °C |
