YJ (Yangjie) YJT300G06H
SKU / part number: YJT300G06H
Price on request
Send the quantity and delivery requirements so our team can confirm availability and provide a quotation.

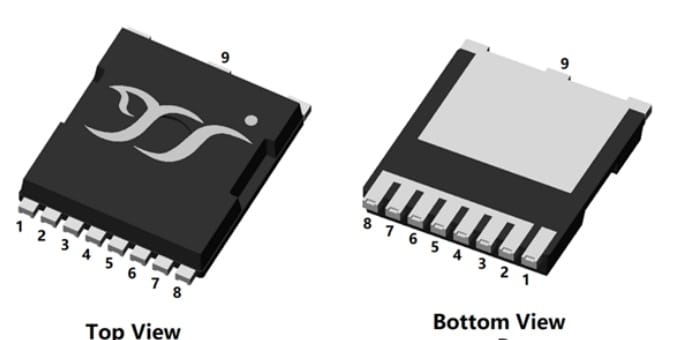

60 V N-channel power MOSFET using a TOLL package and double-trench structure for inverters and UPS systems. Current capability depends on thermal conditions. The image is the manufacturer’s outline illustration.
| Package | TOLL |
|---|---|
| Drain-source voltage VDS (maximum rating) | 60 V |
| Continuous drain current ID (TC = 25 °C) | 300 A |
| Continuous drain current ID (TA = 25 °C) | 30 A |
| Gate-source voltage (maximum rating) | ±20 V |
| On-resistance (VGS = 10 V, ID = 150 A, TJ = 25 °C) | 1.5 mΩ typ.; 2 mΩ max. |
| Junction temperature range | −55 … +150 °C |
